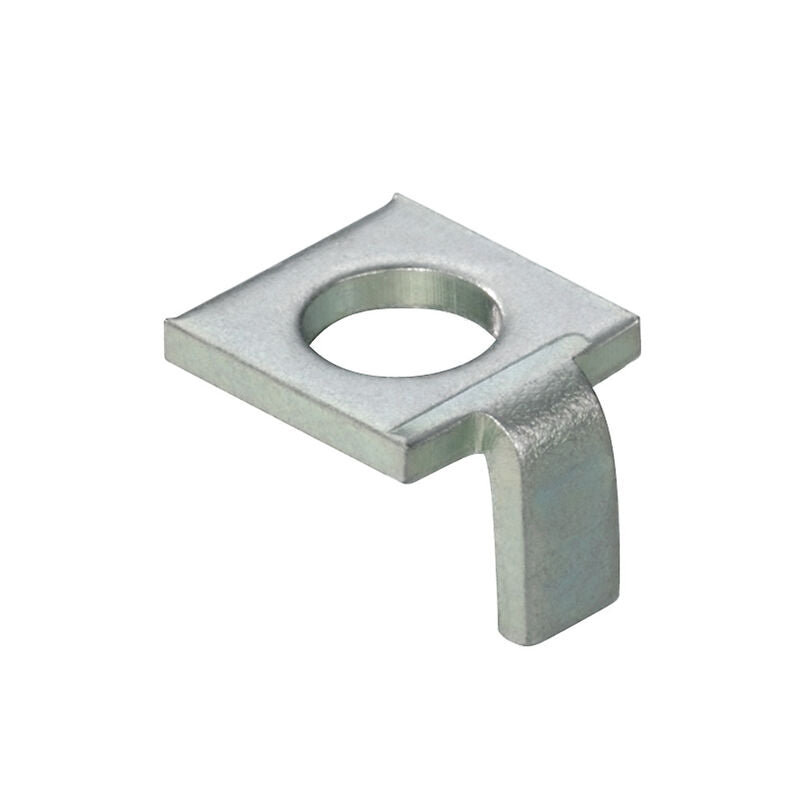

0280100000 DKSUE NSCH/ESCH Fastening element (Terminal), silver, Height: 12.5 mm, Width: 10 mm, Steel, 180 °C

🔩 Fastening element (Terminal) silver – Steel, Silver

Fastening element

Order No.: 0280100000
Type: DKSUE NSCH/ESCH
GTIN (EAN): 4008190036348
Quantity: 100 items per pack

✨ Product Highlights

• Steel fastening element (terminal) with silver finish
• Height: 12.5 mm, Width: 10 mm, Depth: 7.7 mm
• Continuous operating temperature up to 180 °C
• Type of fixing: screwed in
• Pitch: 13.5 mm

📐 Dimensions & Weight

• Depth: 7.7 mm (0.303 in)
• Height: 12.5 mm (0.492 in)
• Width: 10 mm (0.394 in)
• Net weight per item: 1.315 g

🌡️ Operating Conditions

• Ambient temperature: -60 °C to +85 °C
• Continuous operating temperature: -60 °C to +180 °C

✅ Compliance & Safety

• RoHS: Compliant without exemption
• REACH SVHC: No substances above 0.1 wt%
• Explosion-tested version: No

📦 Material & Specifications

• Basic material: Steel
• Colour: Silver
• Version: Miscellaneous

🔖 Classifications

• ETIM 8.0 / 9.0 / 10.0: EC002848
• ECLASS 14.0 / 15.0: 27-25-03-90

👉 Ideal for industrial applications requiring durable steel fastening elements with high heat resistance.
